¶ 1. How can I view version information？
Before setting up, device firmware needs to be upgraded to 1.0.5.1 or a higher version
- Mega upgrade to query firmware version
——————Mega Firmware Version Upgrade Guide——————
- Mega LIte upgrade to query firmware version
——————Mega Lite Firmware Version Upgrade Guide——————
¶ 2. Import configuration file
¶ 1. Configure Wi-Fi and query the device IP
For MDH network setup, please refer to the instructions：How to use MDH to set up WiFi for Mega
For Lightburn network settings, please refer to the instructions：How to Set Up Wi-Fi for Mega Using LightBurn
After configuring the network, please record the IP address of the device.
¶ 3. Import the TCP configuration file of Lightburn
¶ 1. Import configuration file

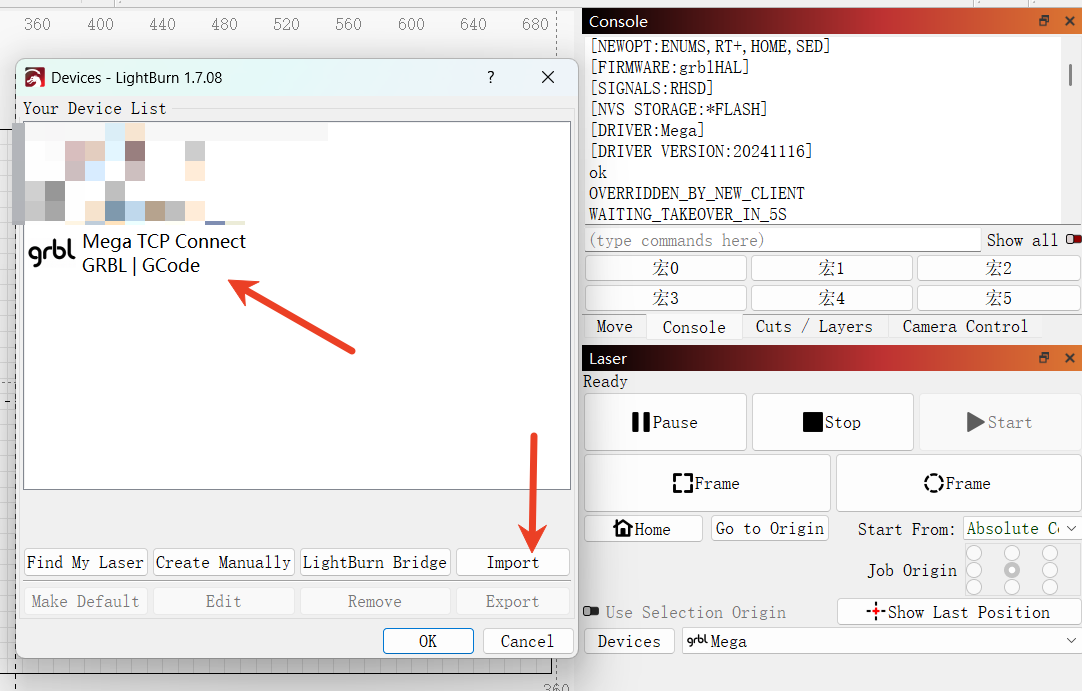

Drag the file to any position in the Lightburn window or click "Devices" -> "import" to import it.
————————Mega TCP Configuration.lbdev————————

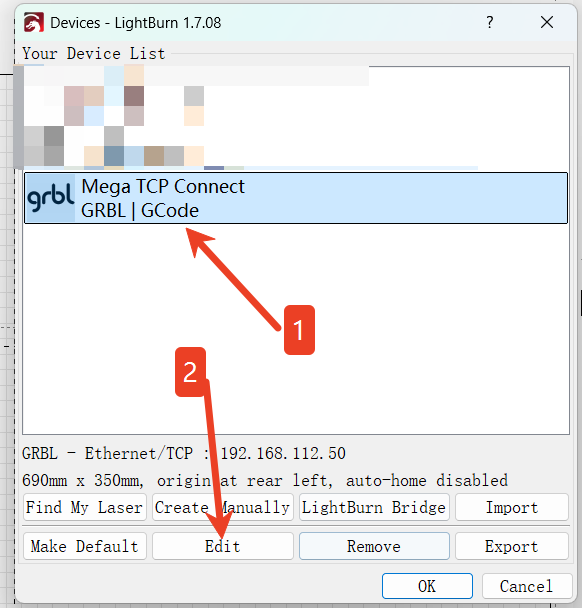

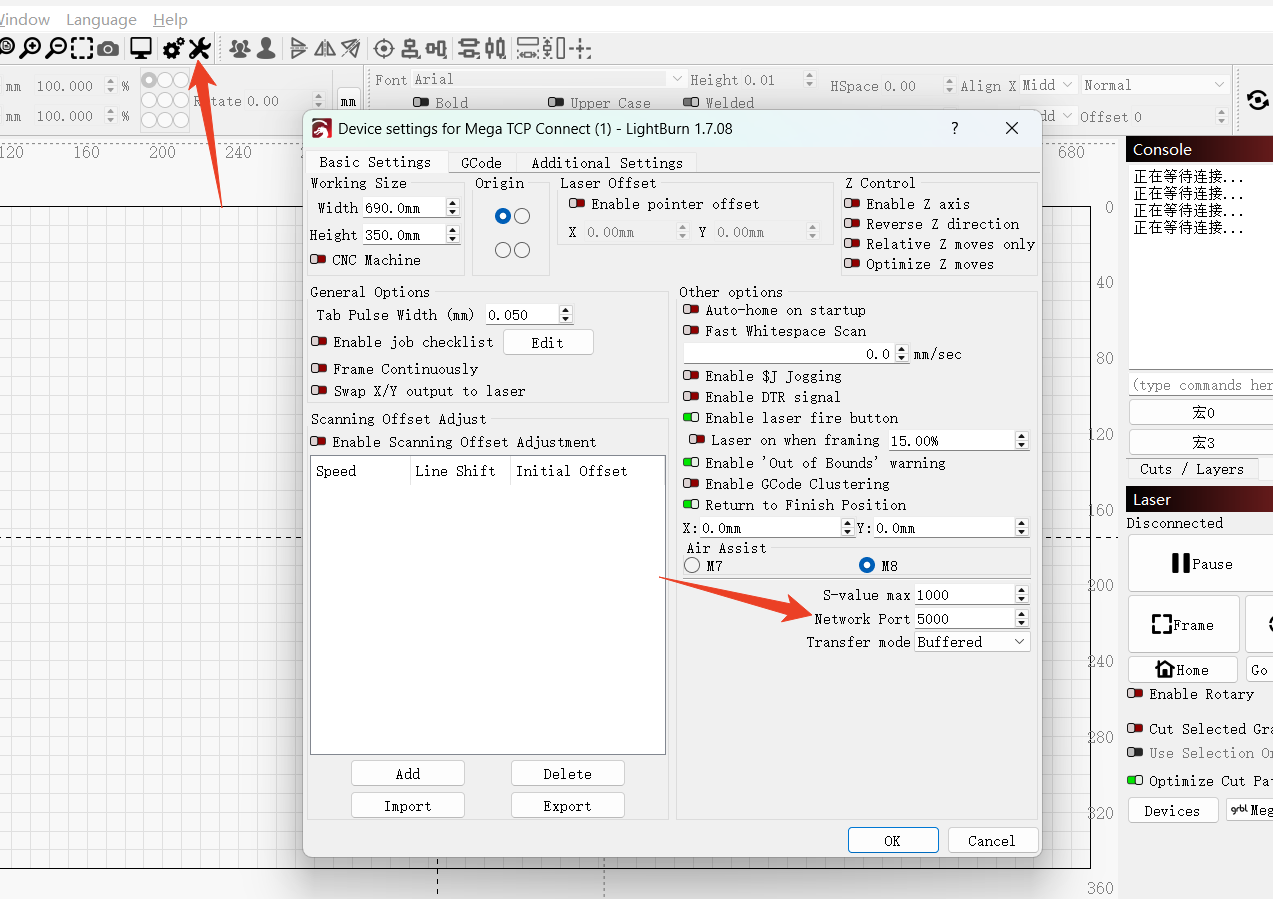

¶ 2. Edit configuration file

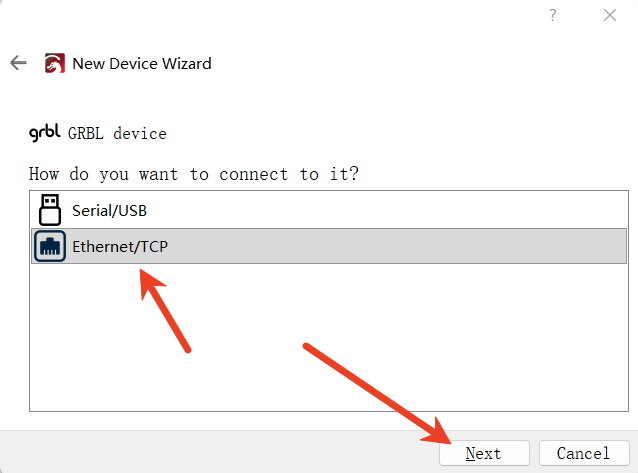

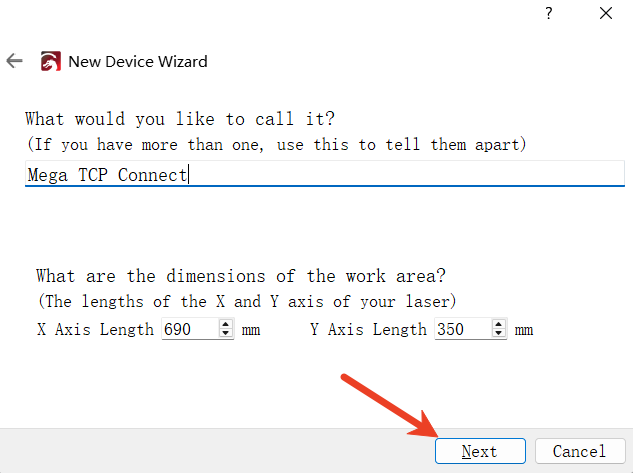

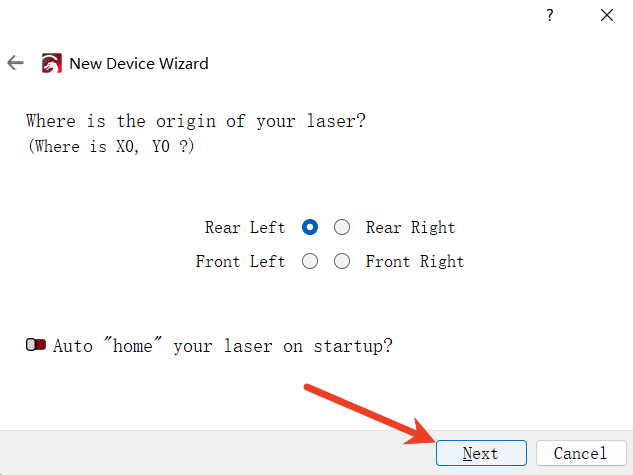

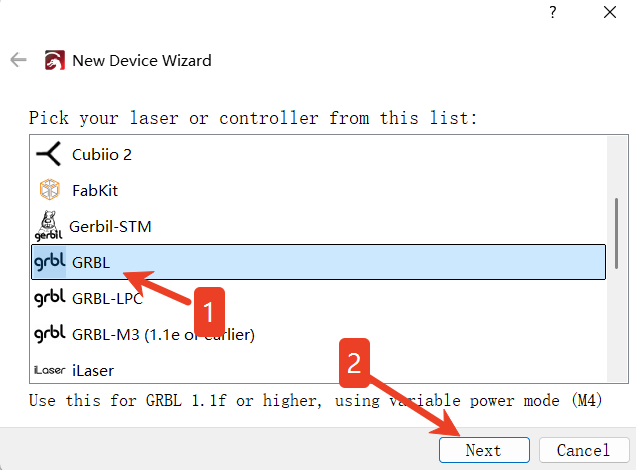

¶ 3.Select GRBL, then click "Next" until you reach the window for setting the IP address.

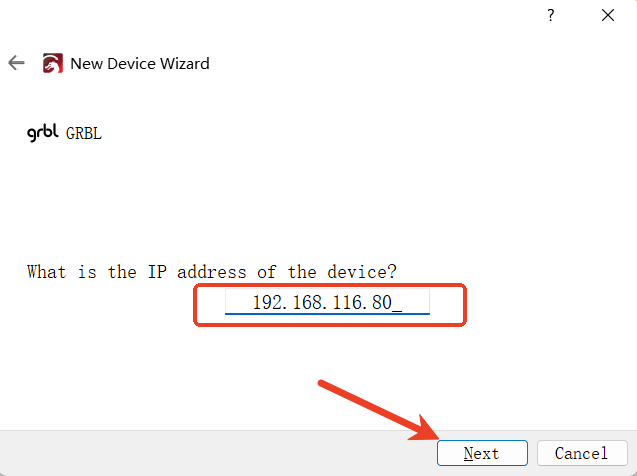

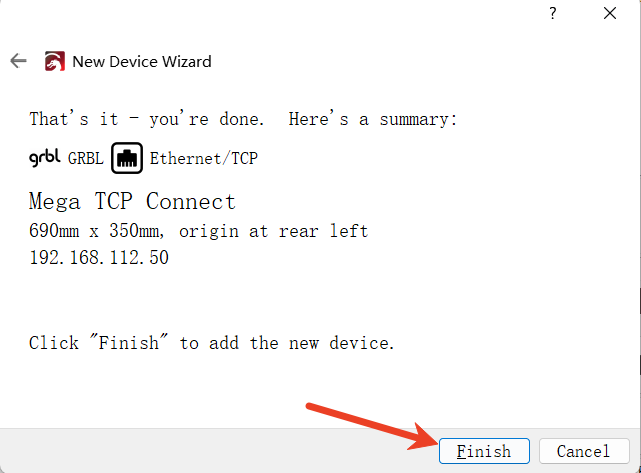

¶ 4. Enter the IP address of the device, click "Next" and "OK" to complete the setup.

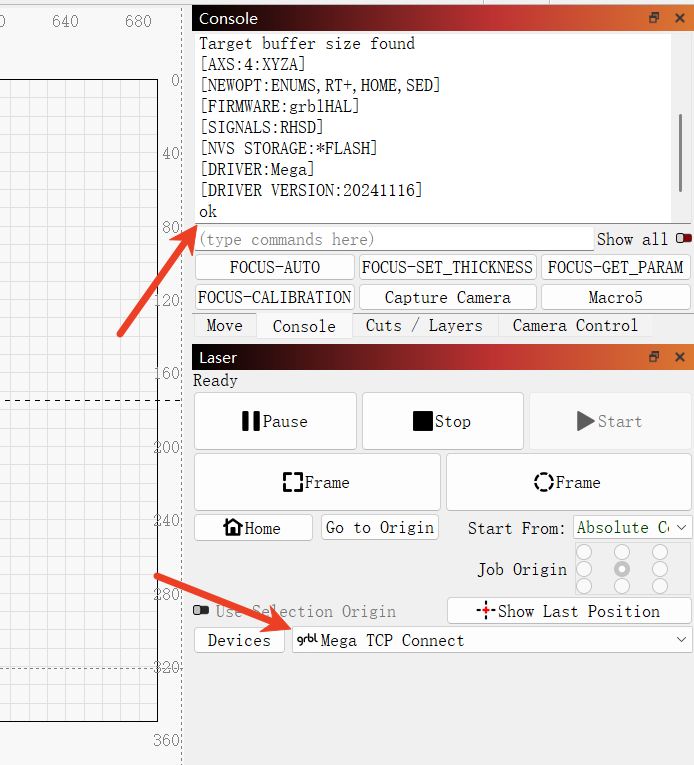

¶ 5. Complete the connection
