Calibrated optical path video
————Calibrate the optical path————
¶ 1. Adjust the laser tube to the first reflector（Unnecessary steps）
In most cases, there is no need to adjust the laser tube to the first reflector unless the laser tube moves.

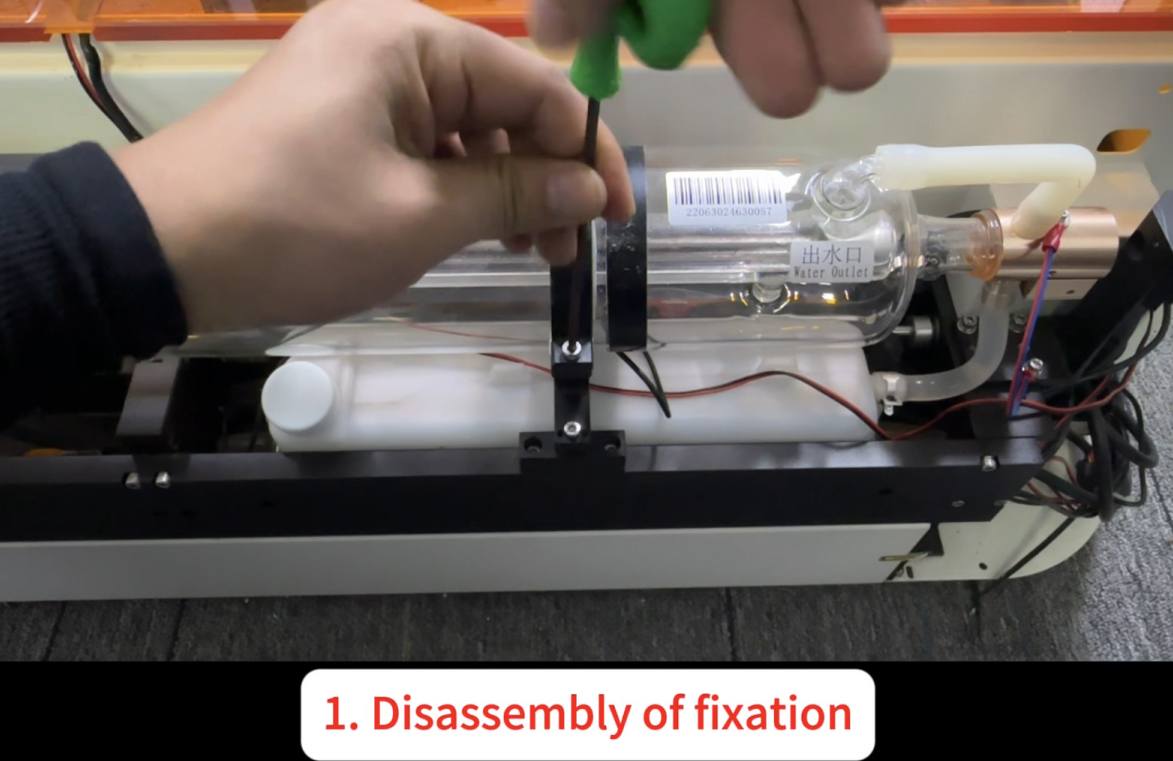

1. Remove the fixation of the laser tube

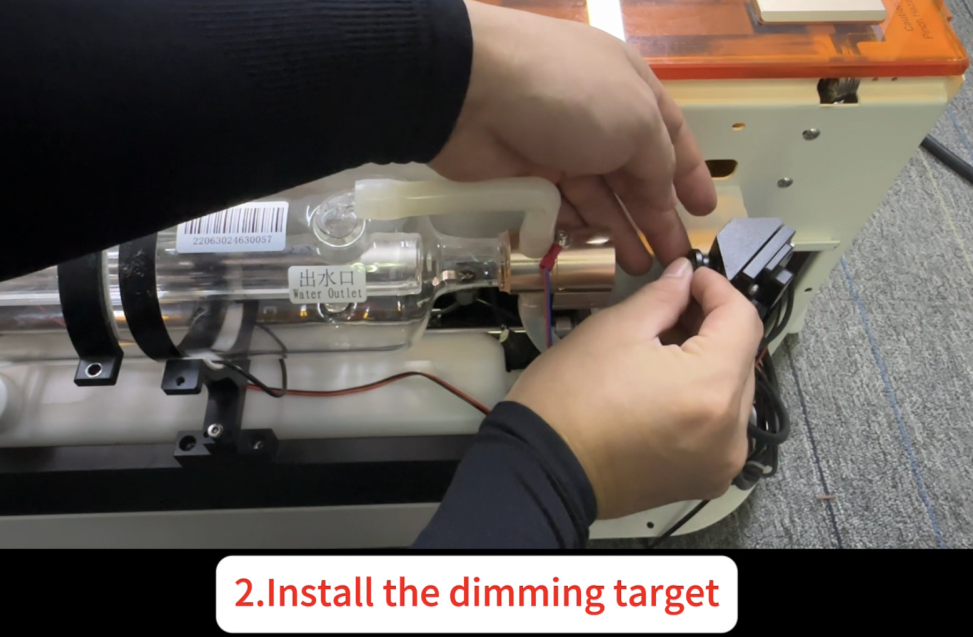

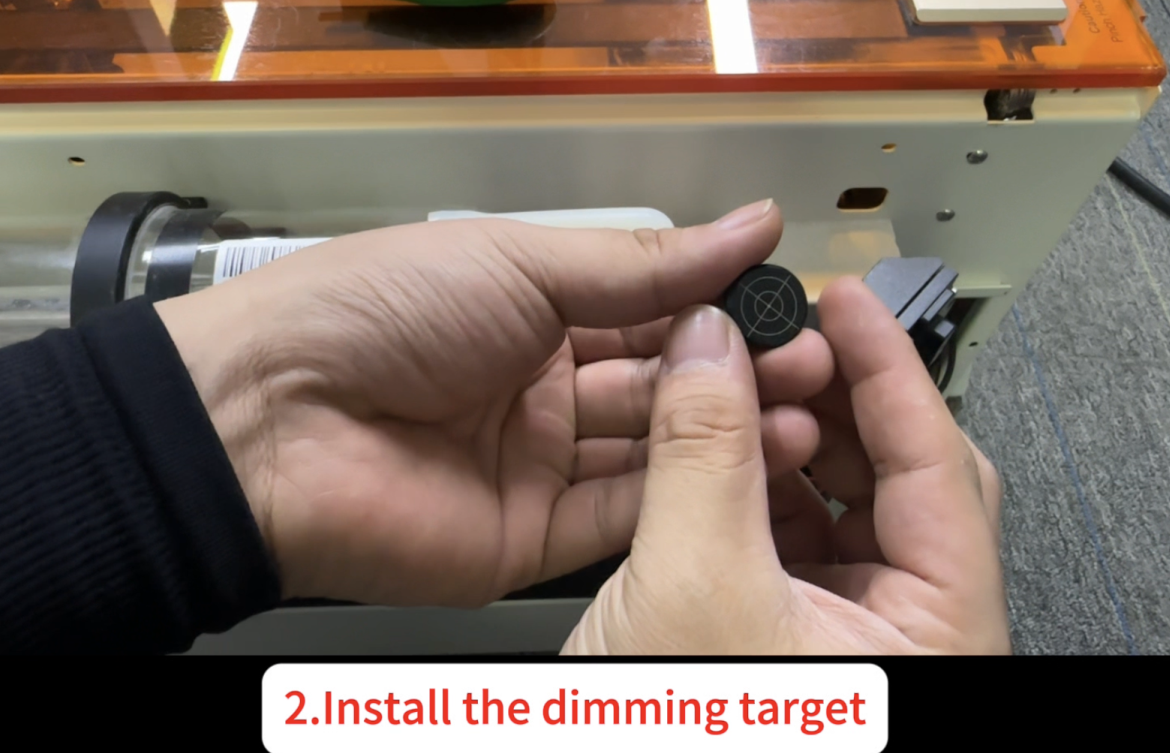

2. Install the dimming light target

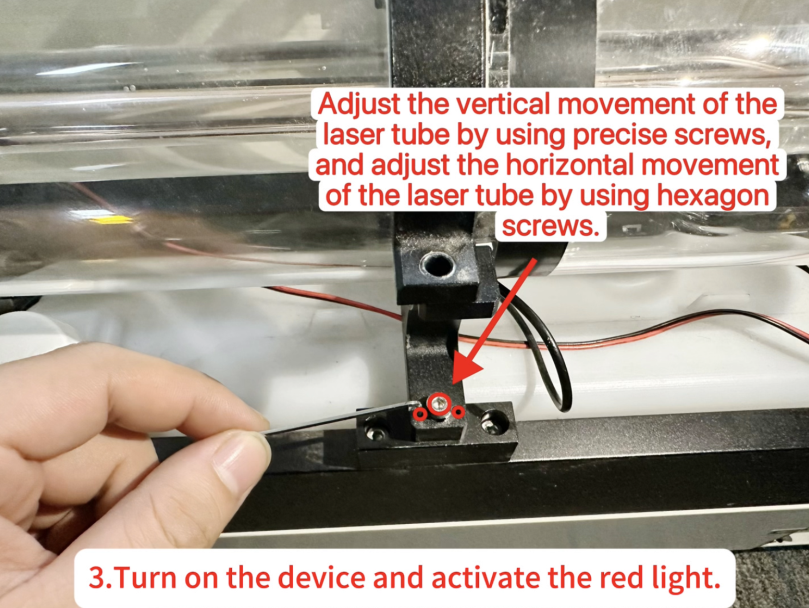

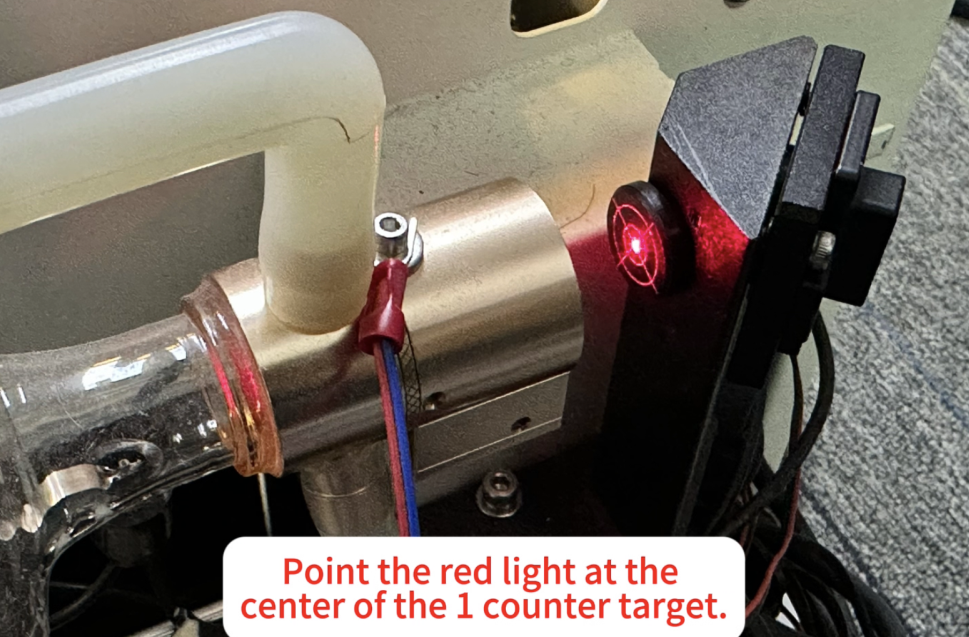

3. Vertical and horizontal adjustment to align the auxiliary red light with the center of the target.
4. Lock the fixing screws of the laser tube.

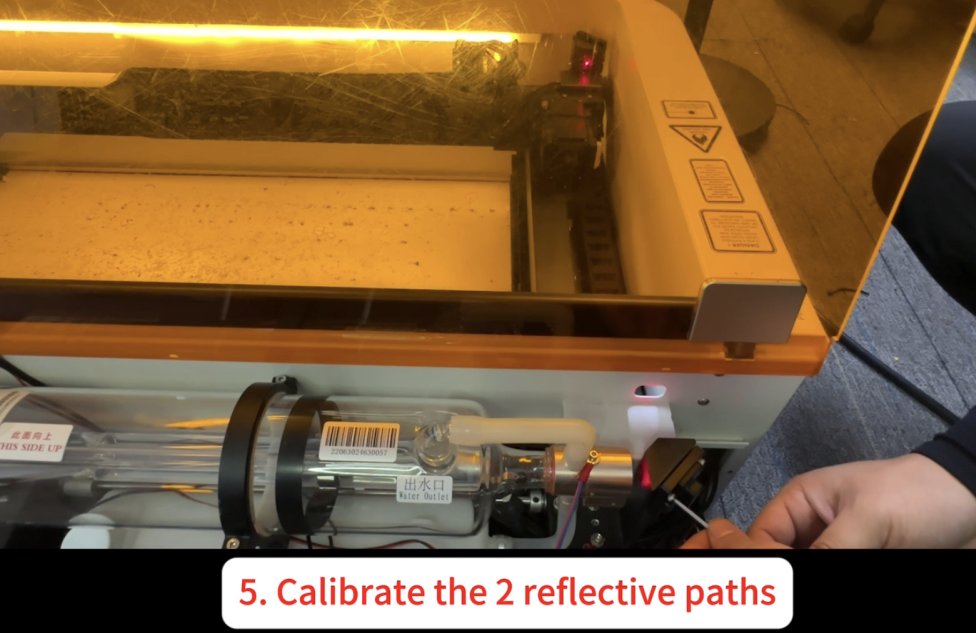

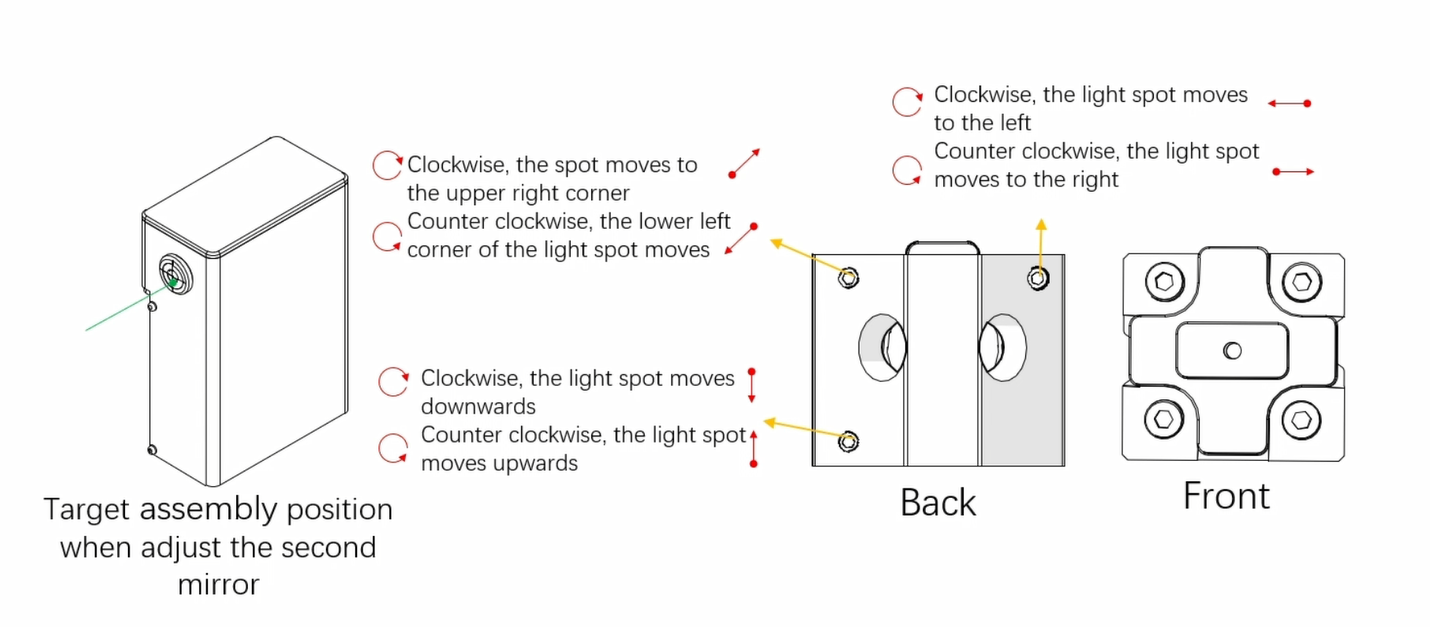

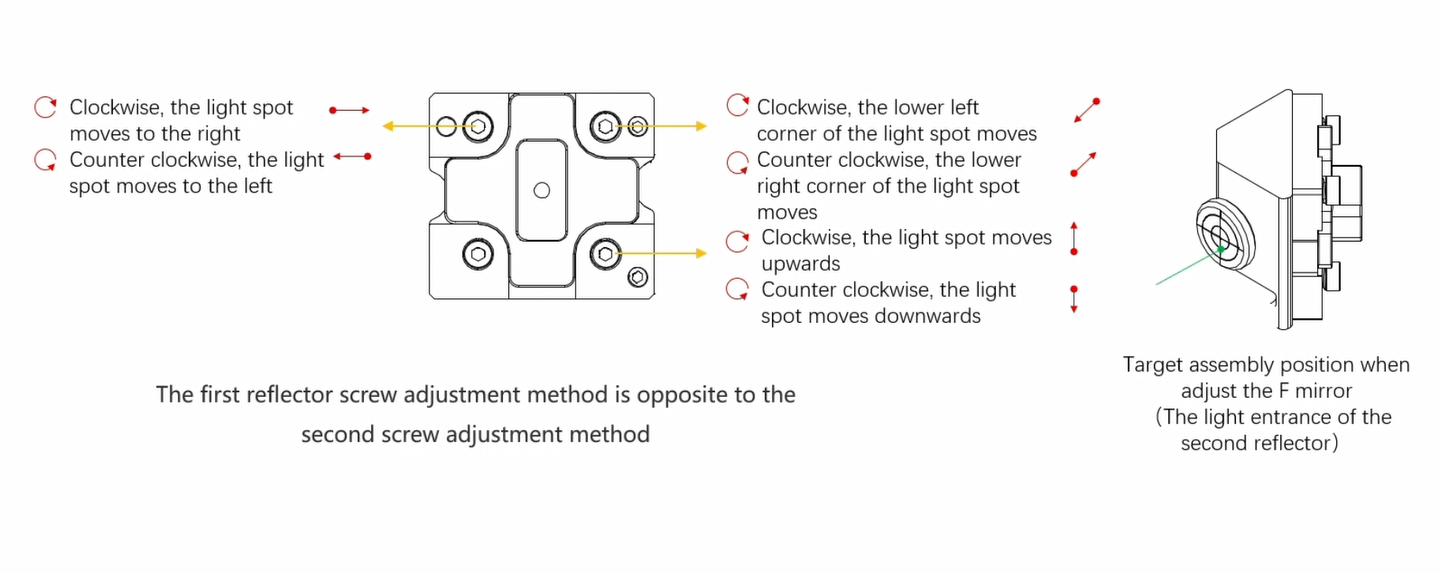

¶ 2. Adjust the optical path from the first reflector to the second reflector
¶ 3. Adjust the optical path from the second reflector to the third reflector
