¶ 1. Remove the laser head
1. Remove the screws of the outer cover

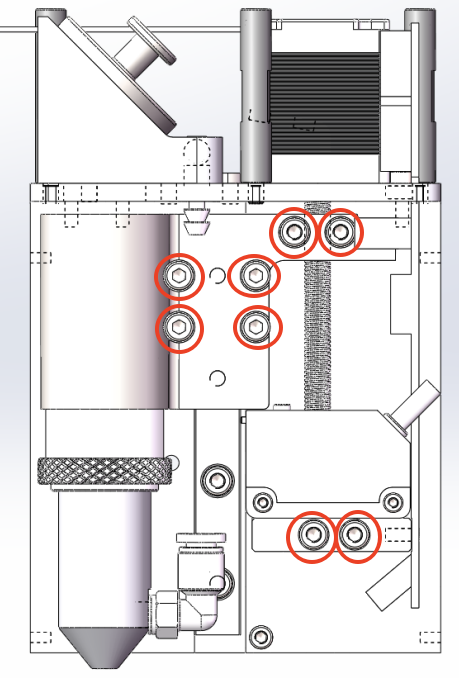

2. Disassemble the laser head component

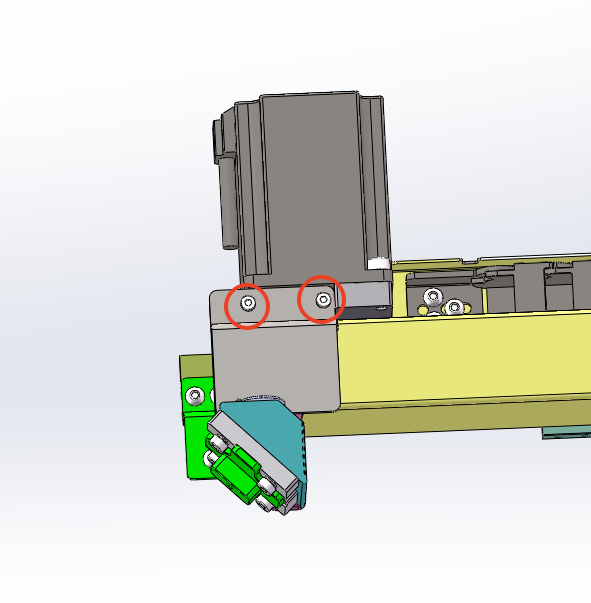

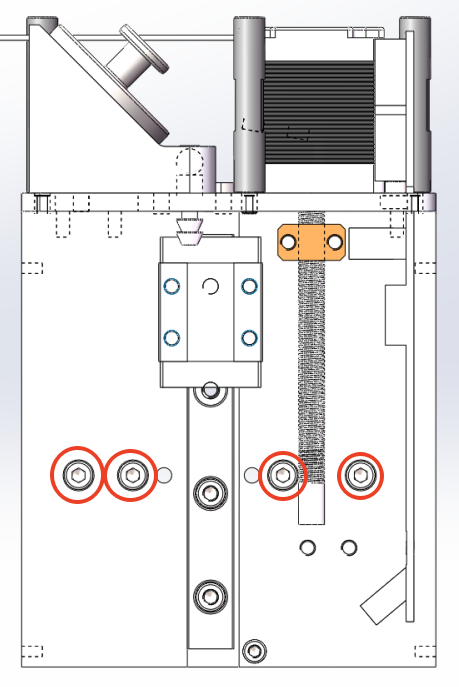

3. Remove the fixing screws of the laser head
¶ 2. Remove the tracks

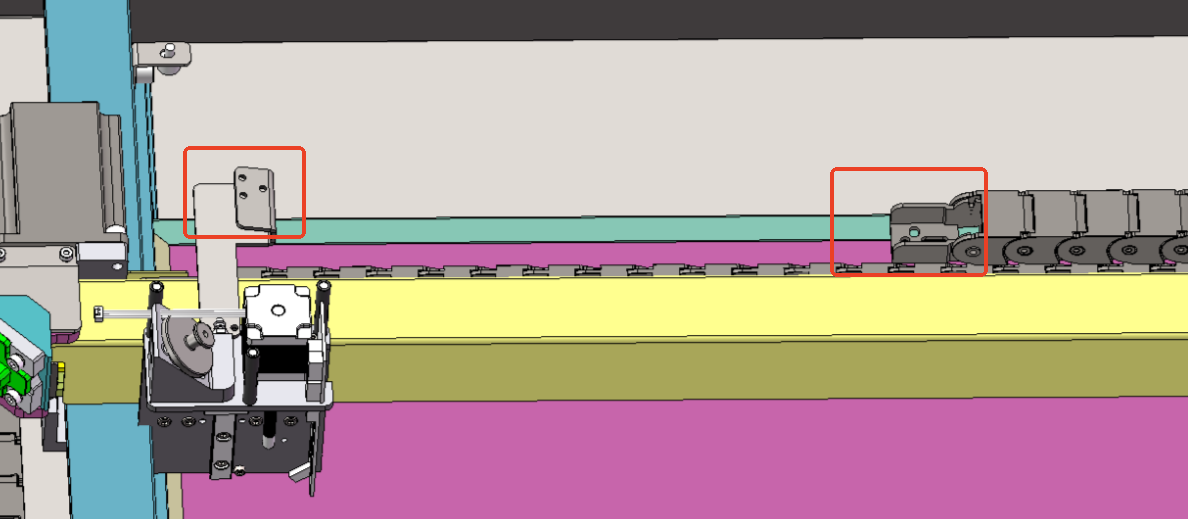

1. Remove the screws of the track chain

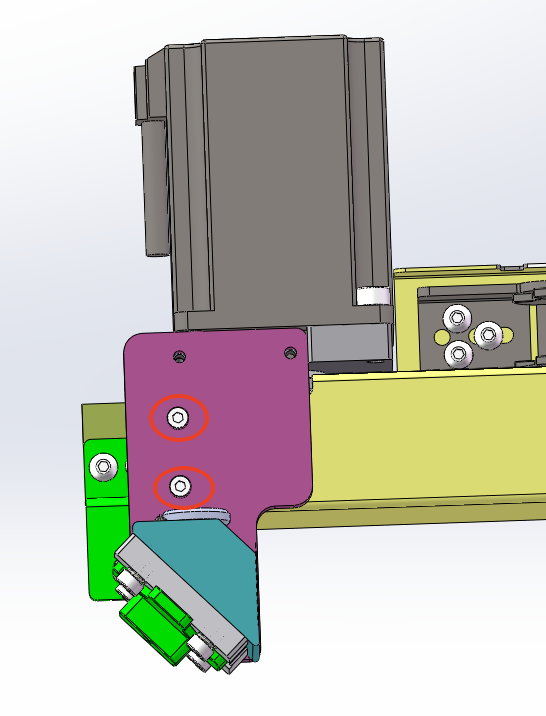

¶ 3. Remove the second reflecting mirror component

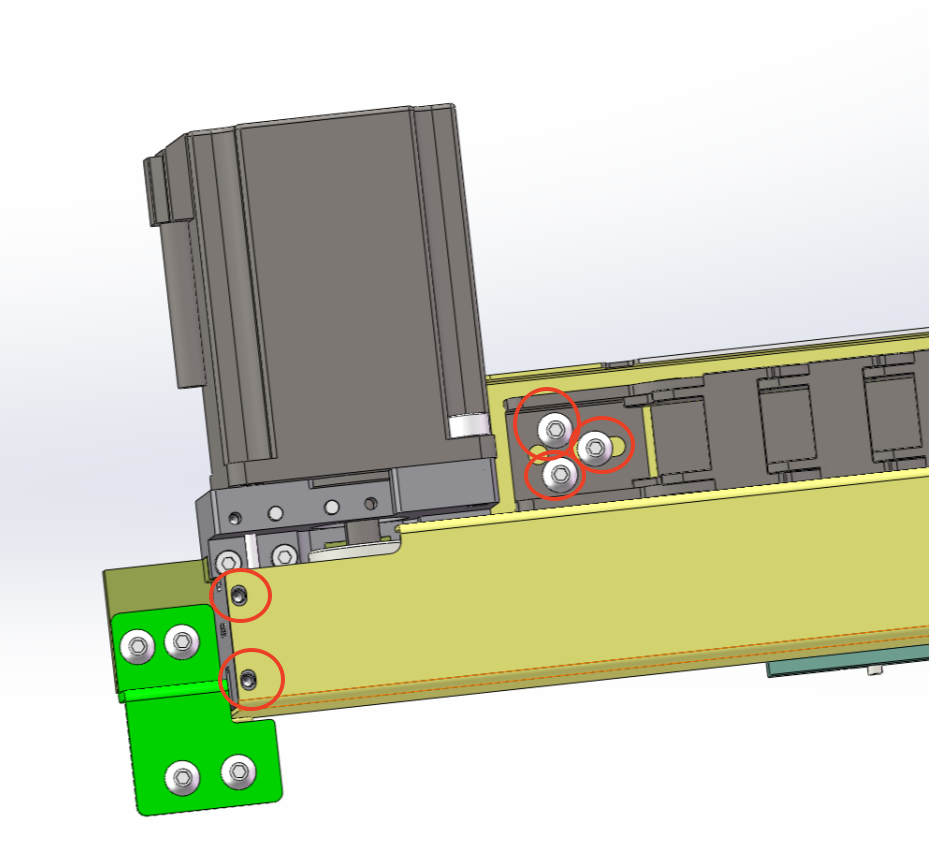

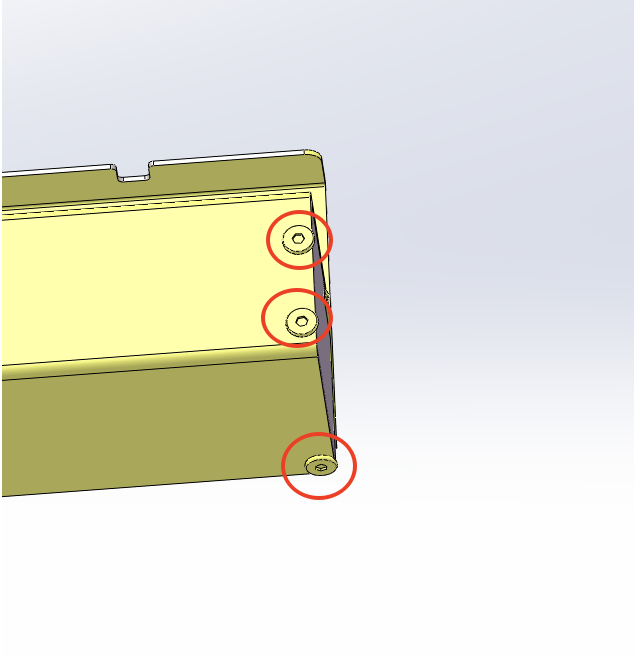

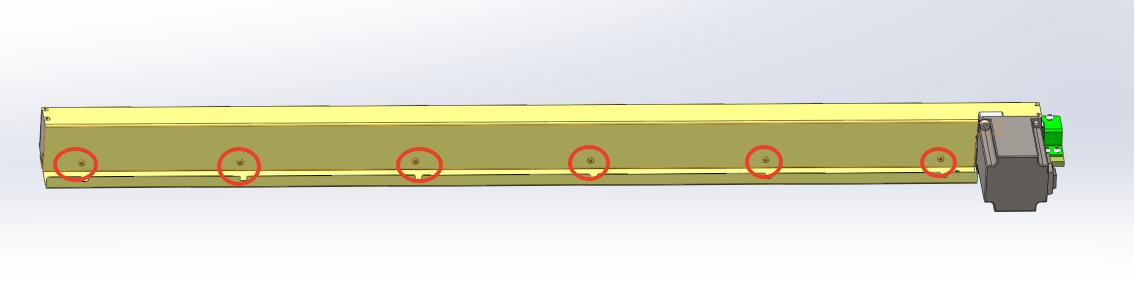

¶ 4. Remove the screws of the X-axis outer cover
¶ 5. Remove the limit sensing piece on the slider.

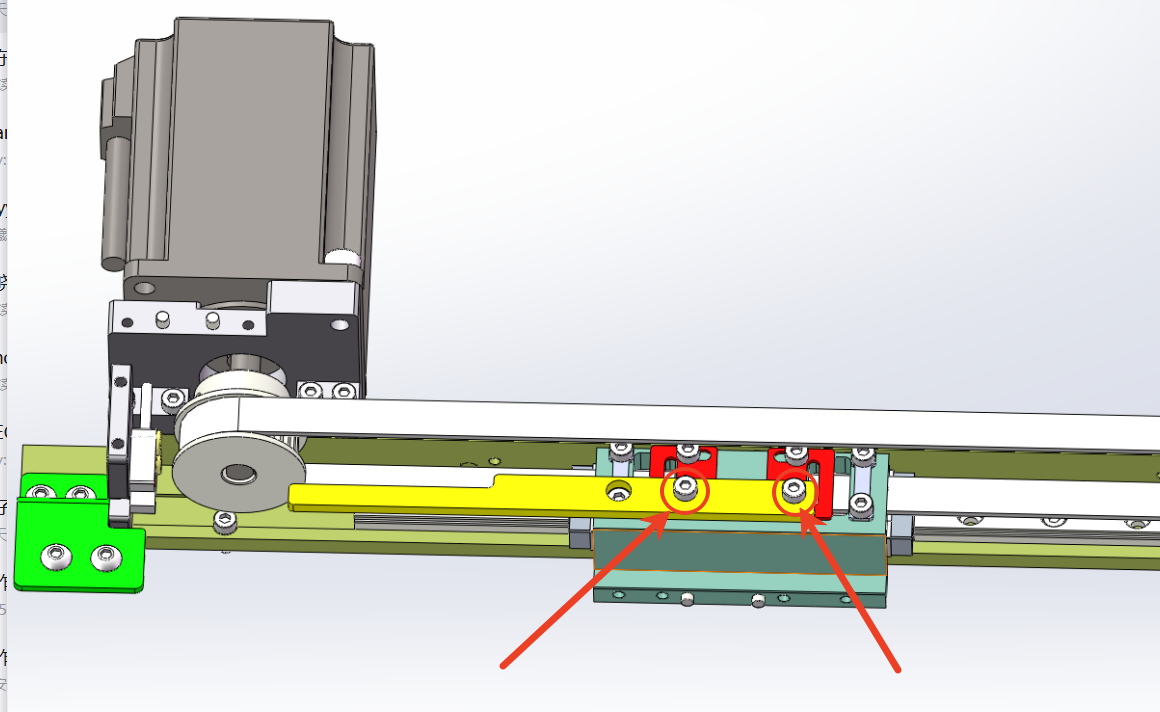

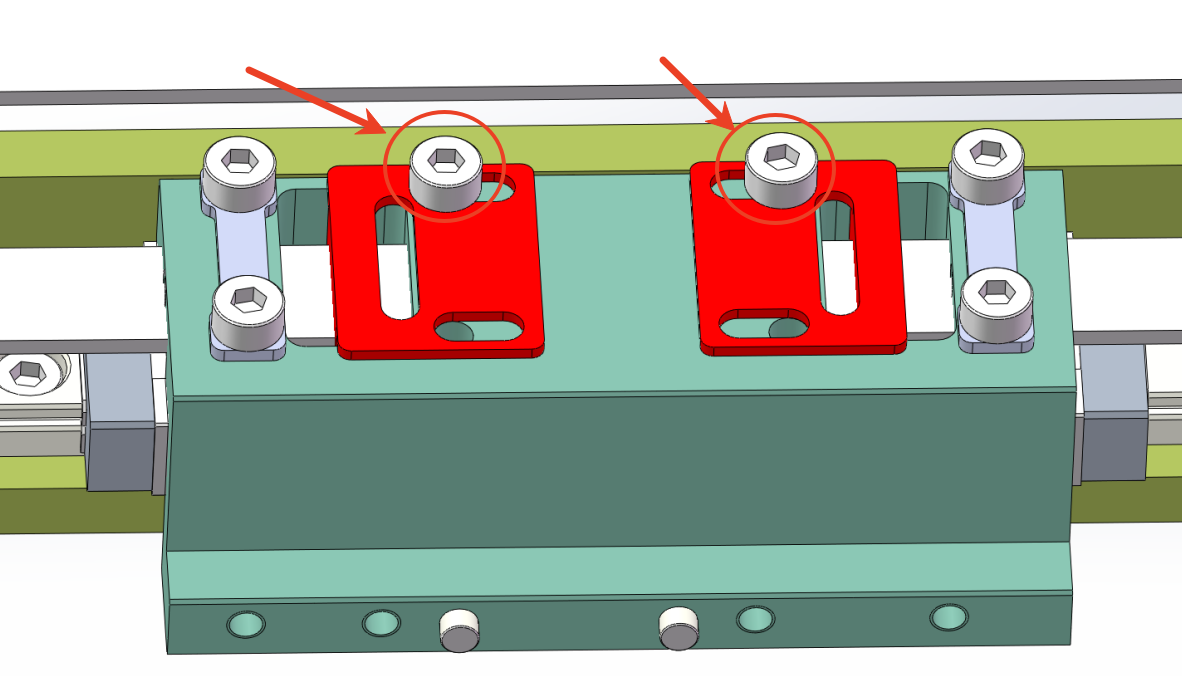

¶ 6. Loosen a few of the screws that secure the belt slightly

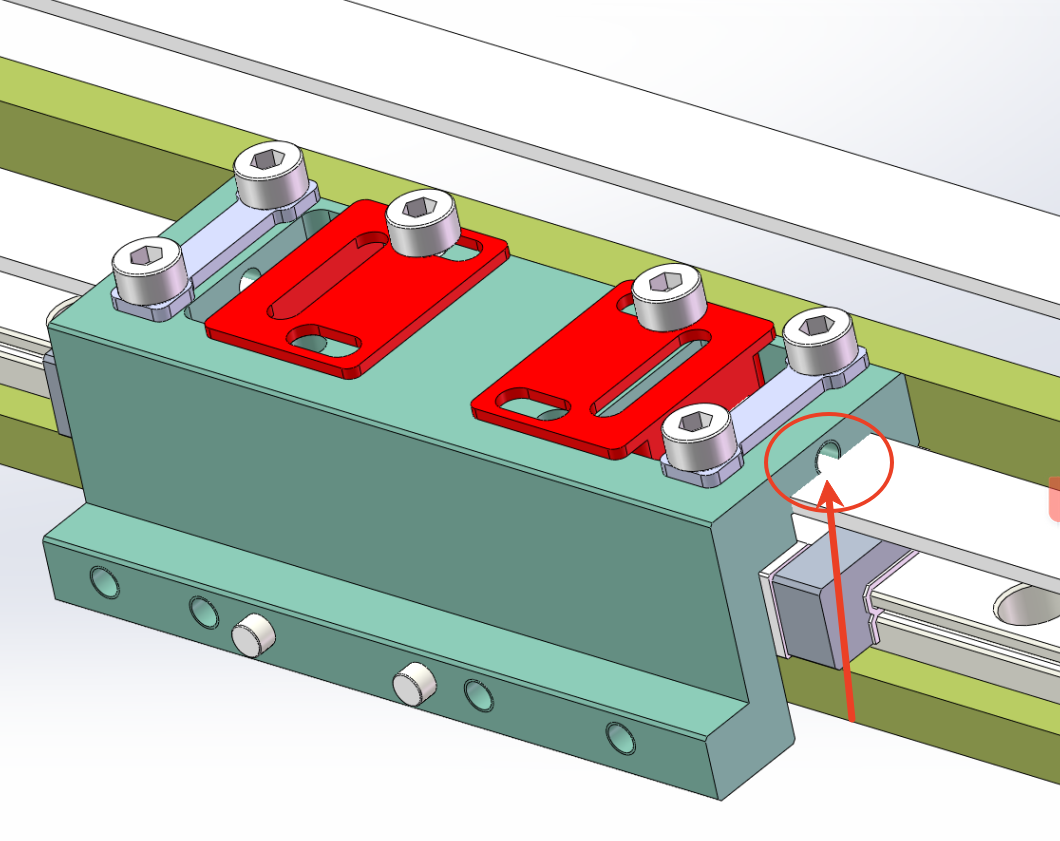

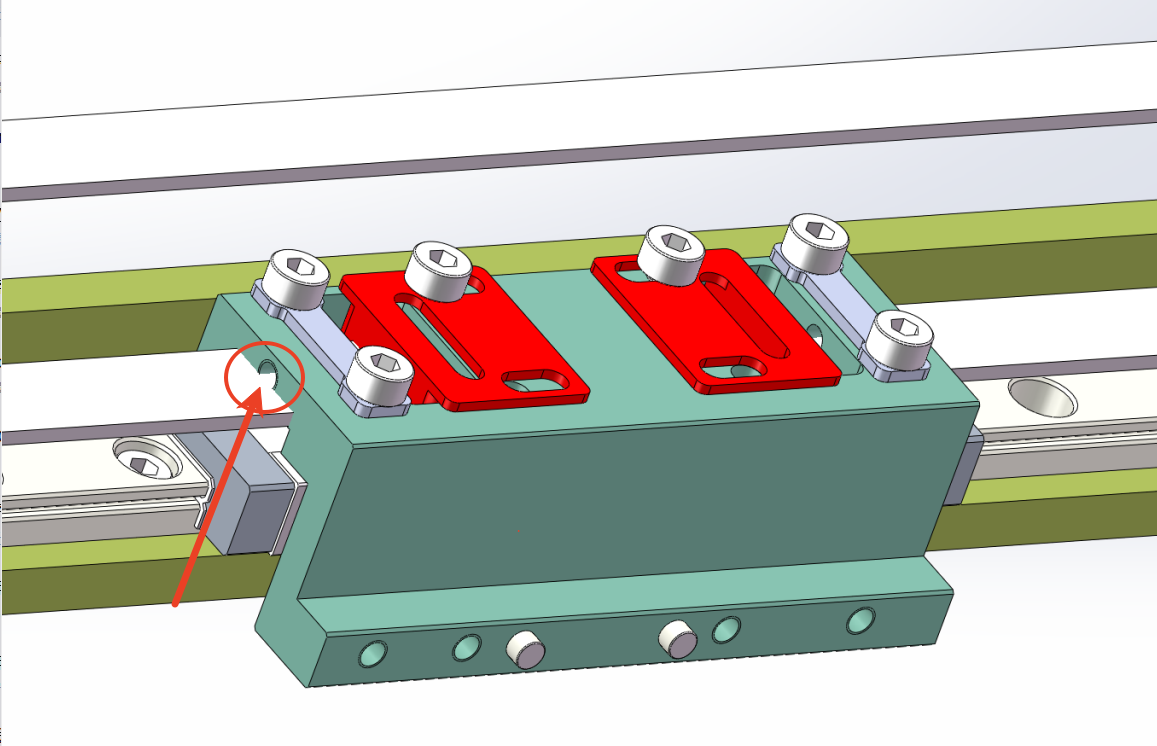

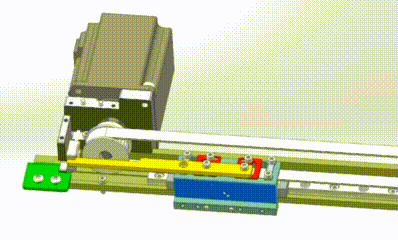

¶ 7. Use a hexagonal wrench to adjust the tightness of the belt.
¶ 8. Reinstallation Precautions
1.After installing the limit sensing piece on the slider, move the X-axis to the left to ensure that the limit sensing piece can move normally.
