Before setting up, MDH needs to be upgraded to 1.5.0 or above, and the device firmware needs to be upgraded to 1.0.4.0 or a higher version
¶ 1. Import the distortion correction configuration file

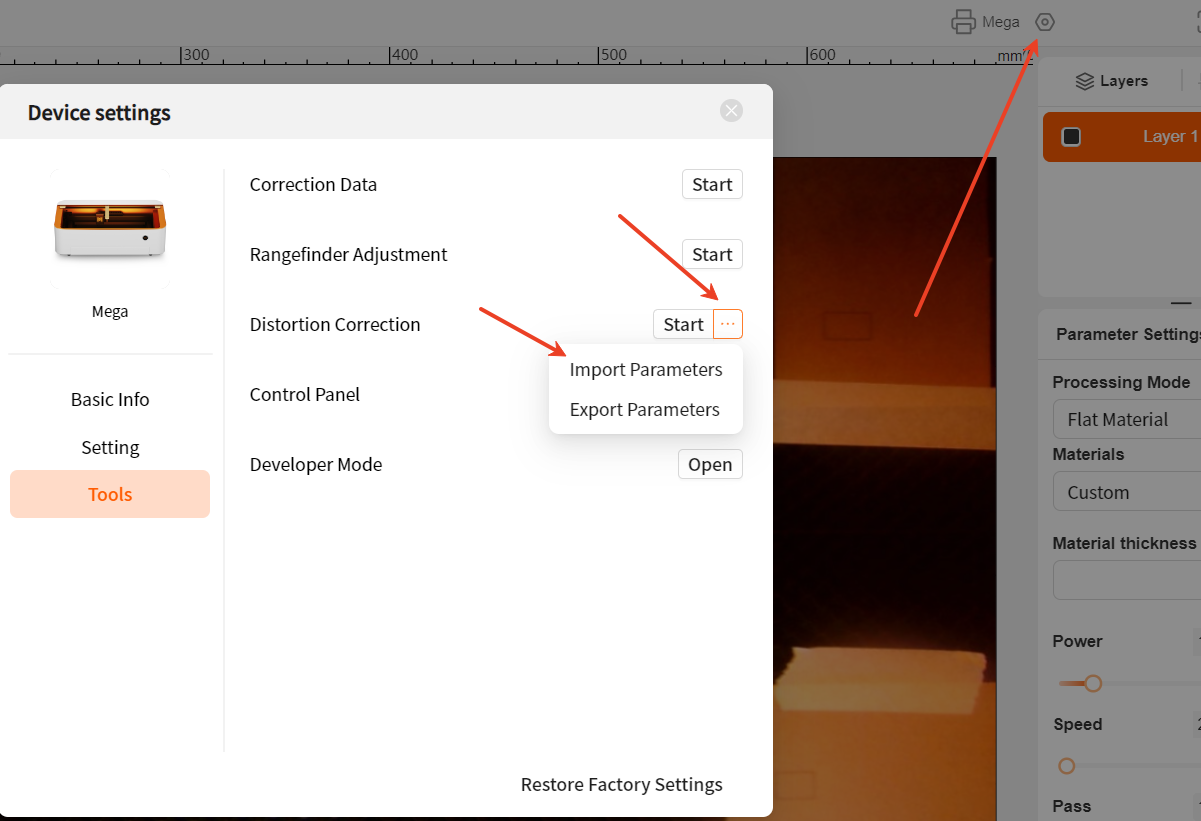

1.1 In Device settings -- tools, find Distortion correction -- Import Parameters

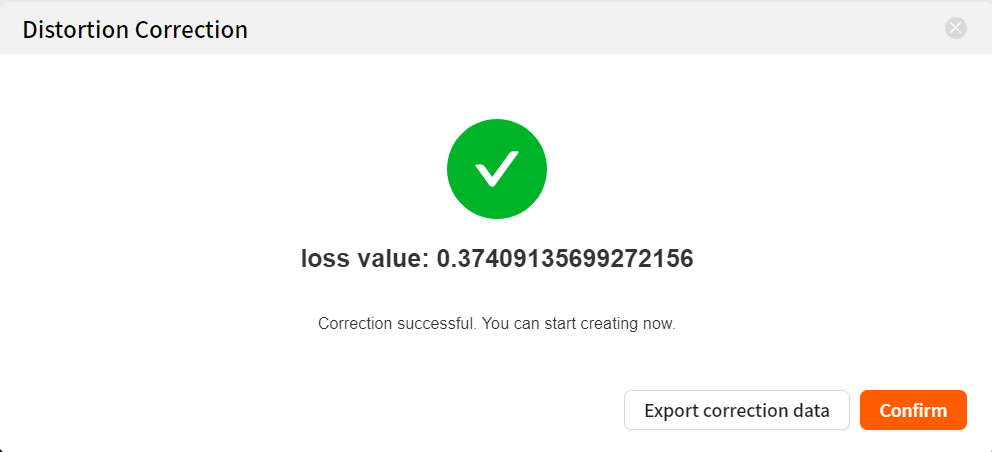

1.2 will download calibrationCameraDef. Json distortion correction configuration files, drag the window to import.
——————calibrationCameraDef0.34.json——————Special calibration file for honeycomb panels
——————calibrationCamera0.38conveyor.json——————Special calibration file for conveyor belts

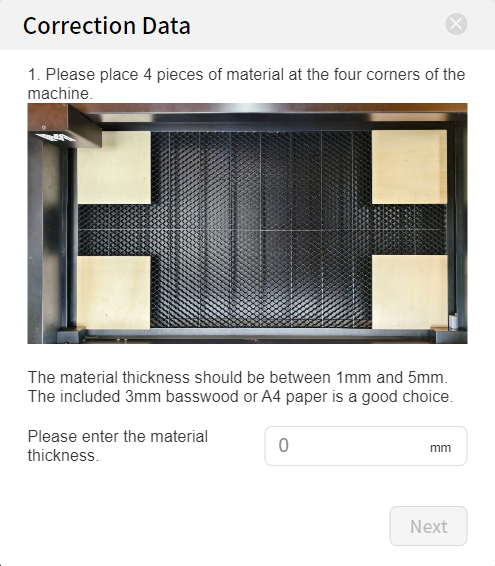

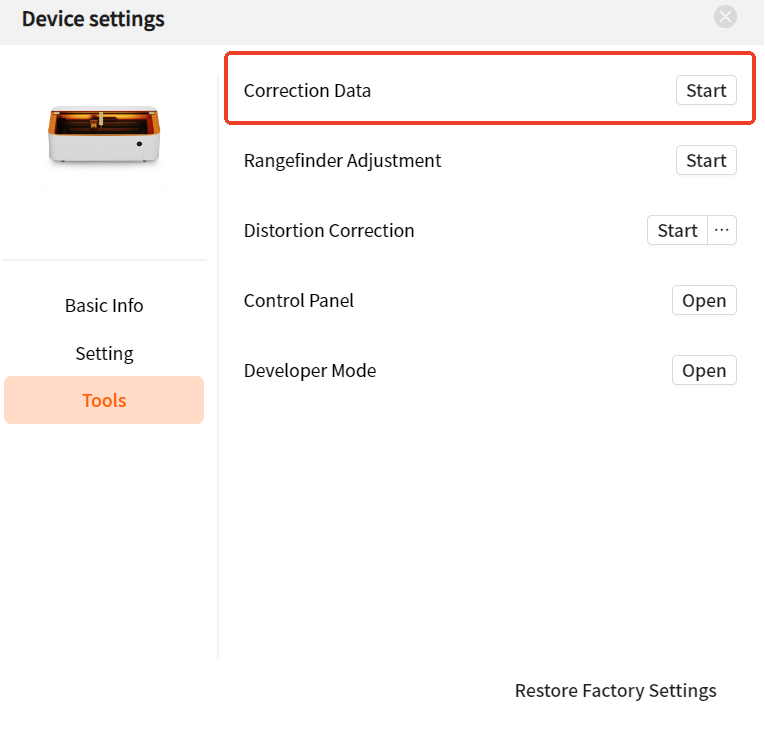

1.3 After the import is completed, perform canvas Correction. Find Correction Data in the device tools - and complete the correction according to the tutorial.
If you need to engrave materials with a thickness of 3mm, please use materials of the same 3mm thickness for the canvas calibration to achieve the best calibration result.
If you are using honeycomb board for engraving, please place the engraving material on the honeycomb board as shown in the picture to align the canvas.
If you use a conveyor belt for engraving, please install the conveyor belt first, and then place the engraving material on the conveyor belt to align the canvas.
